RG58 RG6 RG59 Coaxial Cable With Power 305M 1000M 100M

Name: RG58 RG6 RG59 Coaxial Cable With Power 305M 1000M 100M
Brand: ADP/OEM
Price: 8.00 USD

Wholesale RG58 RG6 RG59 Coaxial Cable With Power 305M 1000M 100M from china suppliers

Brand Name : ADP/OEM

Model Number : rg59/rg6

Certification : CE，CCC，SABS，TUV，RoHS

Place of Origin : Guangdong, China

MOQ : 1 Roll

Price : $8.00 - $16.00/ roll

Supply Ability : 50000meters<7days

Packaging Details : Customized logo(Min. order 10000 meters) Customized packaging(Min. order 10000 meters) Graphic customization(Min. order 10000 meters)

Number of Conductors : 3

Insulation : Foamed PE

Inner packaging : Wooden reel, plastic reel, and paper reel available

Shield : Al Foil/Bonded Al Foil

Jacket : PVC

Type : COAXIAL

Inner conductor : Solid CCA/CCS/CU

Color : Black,white or grey

Certificate : CE/ROHS/ISO9001

Dielectric : Foam PE/Solid PE

Brand : ADP/OEM

Cable Color : Varies

Cable Gauge : Varies

Cable Jacket Color : Varies

Cable Jacket Material : Varies

Cable Length : Varies

Cable Type : Coaxial Power Cable

Connector Contact Plating : Varies

Connector Finish : Varies

Connector Gender : Varies

Connector Insulation : Varies

Connector Material : Varies

Connector Termination : Varies

Connector Type : Varies

Current Rating : Varies

Voltage Rating : Varies

Contact Now

Specification

1.Free sample, short time delivery 2.Good quality, competitive price 3.CE ,ROHS,ISO9001 certificates are available.

Model	Coaxial Cable
Inner Conductor Material	CCA/CCS/CU
Dielectric	SPE/FPE
AL Foil	Bonded, non-bonded, single, double
Braiding wire diameter	0.12mm
Braiding net	48, 64,72,80,96,128 and more
Coverage	40%, 50%, 60%, 80% and more
PVC Degree	65,68,70,75
Color	Black, white or grey
Color	Optional

Electrical properties
Impedance : 75±3Ohms
 Capacitance: 52±2(pF/m)
 Velocity of propagation: 85%

Attenuation	Frequency	Nominal values	Frequency	Nominal values
[@68°F(20°C)]	MHz	(dB/100m)	MHz	(dB/100m)
	5	1.90	750	18.44
	55	5.25	870	19.99
	211	9.43	1000	21.46
	250	10.82	1450	26.25
	300	11.25	1750	28.67
	400	13.12	2050	31.04
	550	16.08	2250	32.81

Product Description

RG58 RG6 RG59 Coaxial Cable With Power 305M 1000M 100M

Packing & Delivery

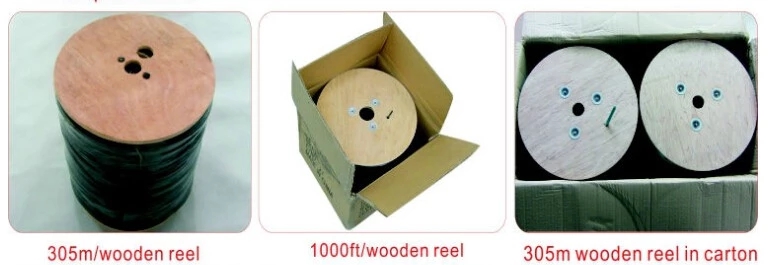

1) Packing Lengths: 100m/roll, other lengths available according to client's request.
 2) Inner packing: Wooden reel, plastic reel, and paper reel available.
 3) Outer packing: Carton box, pull out box, pallet available.
 4) Other packing available according to client's requests.

Recommend Products

Company Profile

Huizhou ADP Cables Co., Ltd is a professional designer and high-tech manufacturer of network cable and fiber optic cable. Our mod-ermined company introduces advanced full set of production lines and testing equipment, in order to meet the various markets demand as customer’s required. Our main products are high-tech cables, including fiber optic cable, fiber optic patch cord, copper cable, CAT5E and CAT6 computer cable, large number pairs cable, telephone cable, USB cable, and other relative network accessories. Our company has a large scale, such as fiber optic factory, cable and wire factory, copper and aluminum factory, PVC factory and PE factory. Our factory covers 20000 square meters. Our company has introduced a group of professionals, who specialize in researching, production and management. We can accurately deliver the ordered products to various countries’ ports around the world as soon as possible. Our people-oriented supplier has won domestic and international customers’ highly appreciated and intimate trust for further cooperation, because of our high quality, low price and faithful service.

Factory Views

Product Tags:

RG58 Coaxial Cable With Power

1000M Coaxial Cable With Power

RG59 High Power Coaxial Cable

RG58 RG6 RG59 Coaxial Cable With Power 305M 1000M 100M Images
